OpenID Connect Authentication

General information

OpenID Connect is a simple identity layer on top of the OAuth 2.0 protocol. It allows clients to verify the identity of the end-user based on the authentication performed by an Authorization Server, as well as to obtain basic profile information about the end-user in an interoperable and REST-like manner.

Twinfield implements OpenID Connect for providing identity information and the OAuth 2.0 protocol for authentication. Please refer to OpenID Connect documentation for more details.

High level workflow for accessing Twinfield resources:

1. Go to the Twinfield developer portal in order to register your OpenID Connect / OAuth 2.0 client and get your Client ID (and optional client secret).
2. Get an access token (and optional refresh token) using one of the supported OAuth flows. You can also request an id token to get user identity information.
3. After obtaining token(s) you have to:
   • Use the access token to process the SOAP web service call. Include it in the SOAP header.
   • Use the refresh token for renewal of the (expired) access token.

warning

It is mandatory to include the CompanyCode in the SOAP header in addition to the AccessToken. It is possible to replace Company code by Company id.

Endpoints

The following endpoints are available:

• https://login.twinfield.com/auth/authentication/connect/authorize
• https://login.twinfield.com/auth/authentication/connect/token
• https://login.twinfield.com/auth/authentication/connect/accesstokenvalidation?token=
• https://login.twinfield.com/auth/authentication/connect/userinfo

Scopes

Twinfield supports the following scopes:

twf.user (Identity token) - contains Twinfield specific information about the user.

info

When adding the twf.user scope add the openid scope as well.

This scope contains the following claims:

• twf.id - contains GUID of Twinfield ID. Only if you have the availability of a Twinfield ID.
• twf.organisationUserCode - user code inside organisation
• twf.organisationId - GUID of organisation

---

twf.organisation - contains organisation information.

This scope contains the following claims:

• twf.organisationCode - code of organisation
• twf.organisationId - GUID of organisation
• twf.clusterUrl - URL of cluster on which organisation is located

---

twf.organisationUser- contains information about organisation user.

This scope contains the following claims:

• twf.organisationUserCode - code of the organisation user (used for login)
• twf.organisationCode - code of the organisation
• twf.organisationId - GUID of organisation

info

Note that the twf.organisationUser scope is mandatory in order to login.

Supported OAuth 2.0 flows

General

Twinfield Security Token Service supports two OAuth 2.0 flows: implicit and authorization code.

You should use implicit flow for native and JavaScript-based clients.

Use authorization code flow if your client has some server-side back-end part. You absolutely need to have such back-end because authorization code flow requires usage of client secret to obtain tokens, and you cannot store such secrets securely on front-end part of your application.

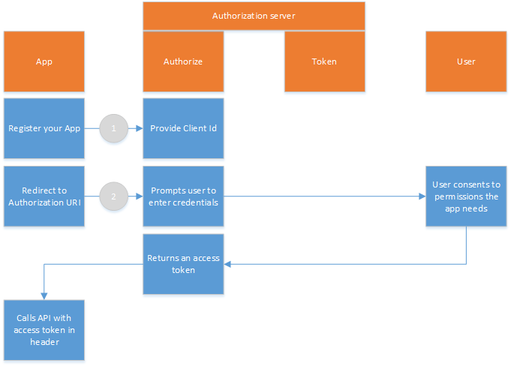

Implicit flow

Here is the example of Twinfield URI for implicit flow:

https://login.twinfield.com/auth/authentication/connect/authorize?
client_id=ID_OF_OAUTH_CLIENT&
redirect_uri=https://www.oauth.client.redirect.uri.com&
response_type=id_token+token&
scope=openid+twf.user+twf.organisation+twf.organisationUser&
state=SOME_RANDOM_STATE&
nonce=SOME_RANDOM_NONCE

ID_OF_OAUTH_CLIENT and https://www.oauth.client.redirect.uri.com are parameters of your client, and they should be registered. Go to the Twinfield developer portal in order to register your OpenID Connect / OAuth 2.0 client and get your Client ID (and optional client secret).

Please note that response_type includes both access (token) and id (id_token) tokens and scope includes standard OpenID Connect scope (openid) and Twinfield specific identity scopes: twf.organisation and twf.user.

After you type this URI in the browser you will be redirected to login screen. After finishing login process (which may include several steps) you will be redirected to "consent screen".

After the last step, the browser will be redirected to the client redirect URI and hash-fragment of the URI (#) will contain id and access tokens as query parameters (id_token and access_token):

https://www.oauth.client.redirect.uri.com/#
id_token=eyJ0e...knbxQ&
access_token=eyJ0eXAL...aZoo5jg&
token_type=Bearer&
expires_in=10000&
scope=openid+twf.user+twf.organisation+twf.organisationUser&
state=SOME_RANDOM_STATE&
session_state=5wswq9Nnp...288cb

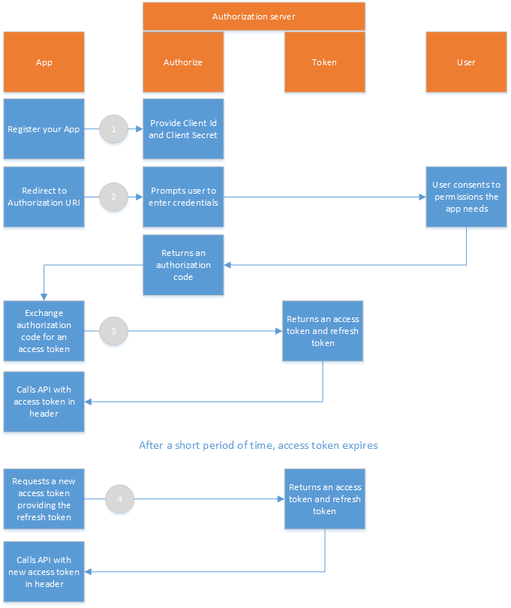

Authorization code flow

Here is the example of Twinfield URI for code flow:

https://login.twinfield.com/auth/authentication/connect/authorize?
client_id=ID_OF_OAUTH_CLIENT&
response_type=code&
scope=openid+twf.user+twf.organisation+twf.organisationUser+offline_access&
redirect_uri=https://www.oauth.client.redirect.uri.com&
state=SOME_RANDOM_STATE&
nonce=SOME_RANDOM_NONCE

In this case response_type is code. After you type this URI in the browser you will be redirected to login screen. After finishing login process the browser will be redirected to "redirect_uri" with additional information in query string:

https://www.oauth.client.redirect.uri.com?
code=95e75...21bf2&
state=SOME_RANDOM_STATE&
session_state=myVUE...e3494

The code parameter contains (the short-lived) authorisation code (95e75...21bf2) which is used to obtain id, access and refresh tokens.

warning

In order to use refresh tokens you need to request additional offline_access scope.

To obtain access and id tokens you need to make a POST HTTP request to Twinfield token endpoint:

POST https://login.twinfield.com/auth/authentication/connect/token
Authorization: Basic SURfT0ZfT0FVVEhfQ0xJRU5UOkNMSUVOVF9TRUNSRVQ=
Content-Type: application/x-www-form-urlencoded
grant_type=authorization_code&
code=95e75...21bf2&
redirect_uri=https://www.oauth.client.redirect.uri.com

You need to pass code and redirect_uri in the POST request body. Token endpoint uses Basic access authentication, so you need to pass Client ID and client secret as Base64 encoded value in the "Authorization" header. Read more about how Authorization header is constructed in "Protocol" section of this article: https://en.wikipedia.org/wiki/Basic_access_authentication. "Authorization" header value SURfT0ZfT0FVVEhfQ0xJRU5UOkNMSUVOVF9TRUNSRVQ= is Base64 encoded value of the Client ID and client secret separated by colon:

<ID_OF_OAUTH_CLIENT>:<CLIENT_SECRET>

ID_OF_OAUTH_CLIENT and https://www.oauth.client.redirect.uri.com are parameters of your client, and they should be registered. Go to the Twinfield developer portal in order to register your OpenID Connect / OAuth 2.0 client and get your Client ID (and optional client secret). You will receive a token response in the following JSON format:

You will receive a token response in the following JSON format:

{
    "id_token": "A73...J0eXA",
    "access_token": "eyJ0eX...CWZOw",
    "expires_in": 3000,
    "token_type": "Bearer",
    "refresh_token": "72f21cb7464098575a339abf415bf51e"
}

Note that refresh_token part would be missing in case you have not requested offline_access scope. If you have refresh token you may request new access token when old is expired. Here is the sample POST request to token endpoint which does that:

POST https://login.twinfield.com/auth/authentication/connect/token
Authorization: Basic SURfT0ZfT0FVVEhfQ0xJRU5UOkNMSUVOVF9TRUNSRVQ=
Content-Type: application/x-www-form-urlencoded
grant_type=refresh_token&
refresh_token=72f21cb7464098575a339abf415bf51e

"Authorization" header value SURfT0ZfT0FVVEhfQ0xJRU5UOkNMSUVOVF9TRUNSRVQ= is Base64 encoded value of the Client ID and client secret separated by colon:

<ID_OF_OAUTH_CLIENT>:<CLIENT_SECRET>

You will receive new access token as a part of following JSON response:

{
    "access_token": "eyJ0eX...RDvPw",
    "expires_in": 3000,
    "token_type": "Bearer",
    "refresh_token": "72f21cb7464098575a339abf415bf51e"
}

Refreshing an access token may return some error codes given below:

• invalid_grant - This error code is returned when:
  • The client credentials provided are invalid
• unsupported_grant_type - This error code is returned when:
  • Grant type is missing
  • Grant type is too long
• invalid_request - This error code is returned when:
  • Refresh token is missing
  • Twinfield organisation is not active
  • Twinfield organisation is deleted
  • Twinfield organisation user is deleted
  • Twinfield organisation user is disabled
  • Twinfield organisation user is locked
  • Twinfield organisation user is password has expired
• invalid_grant - This error code is returned when:
  • Refresh token is too long
  • Refresh token is invalid
  • Refresh token has expired
  • A client tries to refresh token belonging to another client
  • Client does not have access to offline_access scope
  • Client does not have access to a requested scope

Token lifetimes

Flow	Token or code type	Lifetime
Implicit	Access Token	43200 seconds (12 hours)
Authorization Code	Short-lived Code	300 seconds (5 minutes)
	Access Token	3600 seconds (1 hour)
	Refresh Token	788.940.000 seconds (25 years)

Twinfield Cluster

In order to determine the correct cluster the retrieved access token should be sent to the accesstokenvalidation endpoint. Part of the response is the twf.clusterUrl. Now use the full cluster url and add the web service endpoint as described in the Web Services Overview.

Request

https://login.twinfield.com/auth/authentication/connect/accesstokenvalidation?token=

Response

"twf.clusterUrl": "https://api.<cluster>.twinfield.com"

warning

After obtaining the access token make use of the Finder OFF function as described in Finder Web services to request for offices.
